ULV (Cold) Fog Equipment |
| Mouse over to learn more about each machine. |
| |
|
|
| |

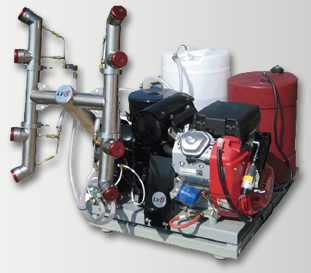

Ag-Mister LV-8™BD |
 |
| |
 |
| |
Ag-Mister LV-8™ Low Volume Sprayer
The Ag Mister LV-8™ adds an entirely new dimension to the Dyna-Fog product line. With the capability of producing droplet sizes from 20 to 130 Microns (VMD) and flow rates that are suitable for a wide range of applications, the LV-8™ is one of the most versatile vehicle mounted machine ever produced.
Originally developed for agricultural orchard spraying, the LV-8™ is ideal for many applications including Mosquito/Vector control, spraying other insects and pests on various row crops, large scale disinfecting, odor control and many more. |
| |
| Type: |
Low Volume Mister, Non-Thermal, Insecticide |
| ENGINE: |
20 HP Honda GX630, 4-stroke, 2 cylinder OHV, gasoline powered, equipped with electric start |
| Fuel Consumption: |
1.6 U.S. gal/hr (6.05 L/hr) |
| Operating Speed: |
2,400 RPM |
| Blower: |
Positive displacement. Straight lobe, rotary type, belt drive |
| Output Air Pressure: |
Rated at 0-10 PSI (.68 Bar) |
| Output Air Flow: |
Rated at 0-400 CFM (9.2 m³/min) |
| Formulation Pump: |
Positive displacement, high volume diaphragm pump with adjustable output from 0 to 4.8 gal/min |
| Nozzle System: |
(8) Air assist nozzles, boom mounted, with 180° horizontal adjustment |
| Tanks: |
Corrosion resistant, high-density Polyethylene |
| Flush: |
15 U.S. Gallons (56.7 liters) |
| Formulation: |
Connect to 3-way valve on machine |
| Gasoline: |
12.2 U.S. gallons (46 L), cap with level gage |
| Particle Size: |
30-150 microns Volume-Median Diameter (VMD). Variable depending on formulation flow rate, viscocity, and boom pressure |
| Weight Empty: |
Approx 502 lbs. (228 kg) |
| Length: |
121.9 cm |
| Width: |
109.2 cm |
| Height: |
106 cm |
| Shipping data |
L x W x H: 203cm x 124.5 cm x 119.2 cm |
|
|
|
