ULV (Cold) Fog Equipment |
| Mouse over to learn more about each machine. |
| |
|
|
| |

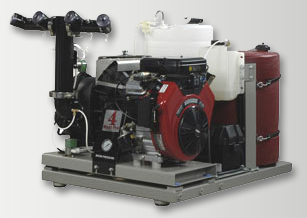

Max-Pro 4™ |
 |
| |
 |
| |
The fully equipped Maxi-Pro 4™ represents Dyna-Fog's top of the line in ULV Chemical Aerosol
Applicators.
An 18 HP Briggs engine, 300 CFM (8.5 cu. m./min.) Roots Blower, 4 high efficiency ULV nozzles and a multitude of pumping system features make the Maxi-Pro 4™ the most widely approved machine for use by Health Ministries and other Mosquito Control Professionals throughout the world. |
| |
| Model: |
2742 |
| Engine: |
4-cycle, twin cylinder 18 HP OHV gasoline engine, fuel pump, alternator and
electric start |
| Blower: |
Rotary, positive displacement direct drive. Air output up to 400 cfm (11.2 m3 / min) |
| Pumping Systems: |
|
| Gear Pump: |
positive displacement, Stainless Steel |
| FMI Piston Pump: |
positive displacement, Stainless Steel
housing/Ceramic Piston Output: 0-600 ml/min |
| Nozzles: |
4 MICROTECT nozzles adjustable 360 o horizontally and vertically |
| Tanks: |
Corrosion and UV resistant, high density polyethylene |
| Tank Capacities: |
Formulation: 57 L with lockable cap, liquid level graduation marks
Gasoline: 47 L with gauge; sufficient for 7.5 hours running
Flush: 3.8 L with tethered cap |
| Machine Dimensions: |
Length x Width x Height = 112 x 94 x 76 cm |
| Shipping Dimens (Crated): |
120 X 102 X 99 cm |
| Shipping Volume: |
1.2 m 3 |
| Shipping Weight: |
252 kg |
|
|
|
